B1 Semiclosed Type Presses
B1 Semiclosed Type Presses

Service Online:

GET QUOTE　　　>
  • Parameter
Machine type                B1-200/230
Model V TYPE    H TYPE
Capacity                         Tons  200/230
Rated tonnage point      mm  6.5/7.5           3/3
Stroke Per Minute  Continuous        SPM  20-50        50-70
Intermittent        SPM  20
Stroke Length              mm 200          100
Die height(S.D.A.U)    mm 450         500
Slide adjustment          mm 110
Bolster area(LR×FB)    mm 1010×820
Slide area(LR×FB)       mm 830×610
Main motor                KW×P 15/18.5×4
Die Cushion capacity        SA-14
Air pressure               kg/cm² 5.5
Precision GB(JIS) 1ST CLASS
Machine dimension    L×W×H 1550×2600×3800

VIEW MORE

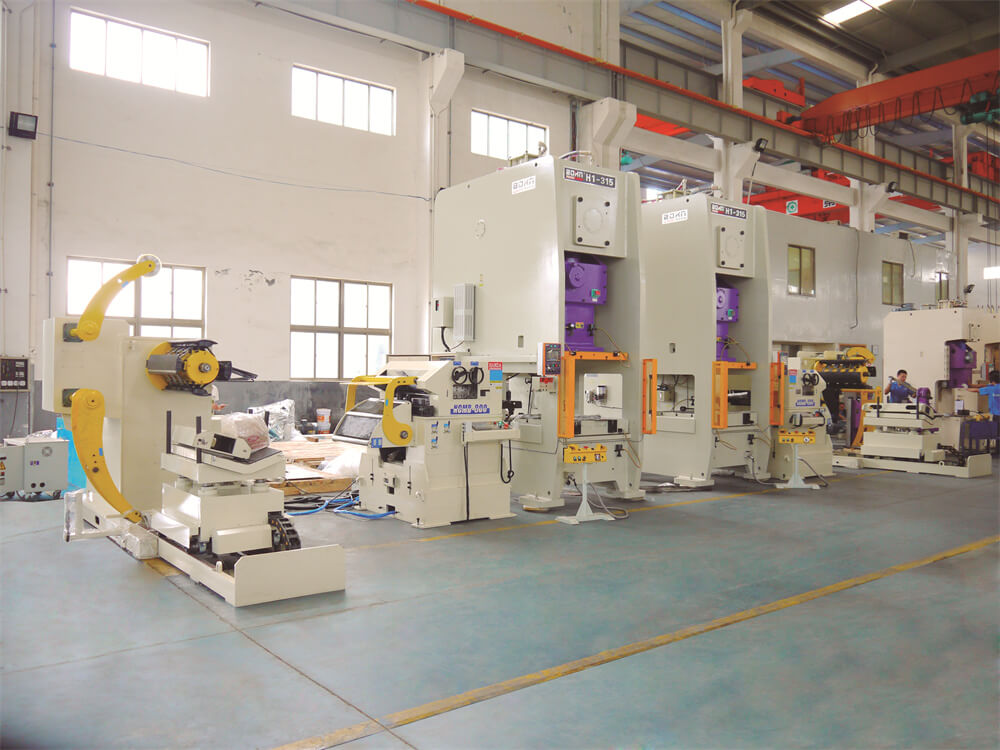

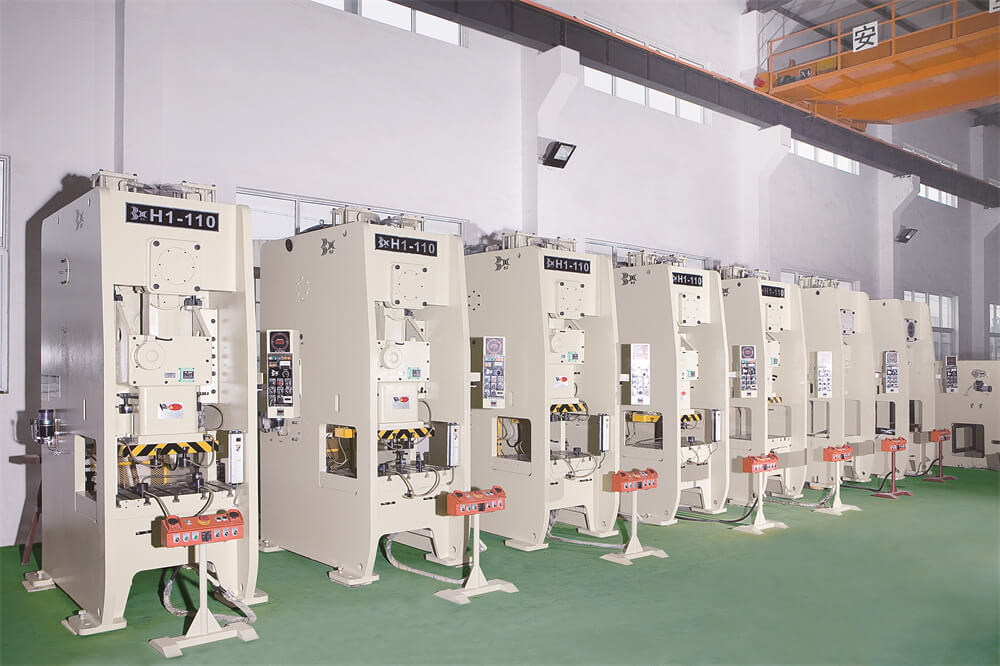

  • Product pictures
  • Configuration
Standard EquipmentOptional Equipment
Hydraulic Overload protection DeviceDie Cushion
Manual Grease Lubrication DeviceAutomatic Grease Lubrication Pump
Automatic Slide Adjustment Device Light Curtain
Digital Readout Die HeightKnockout
Air Counter Balance DeviceDie Light
CAMBDC Sensor
Clutch&Brake Performance MonitoringFoot Operation Device
SPM Showing While Slide Not In MotionQDC(Die Lift/Die Arm/Die Clamper)
Maintance InstructionFeeding Line
Air Outlet DeviceRemovable T-stand
Air Ejector Device
Overrun Protection Device
Inverter Motor
Misfeed Device
Main Motor Direction Control Device
Digital Stroke Counter
Pre-cut Counter
Pre-set Counter
Power Outlet
Anti Vibration Mount
Maintenance Toolbox
Operation Manual
